Benchtop NIR Analysers

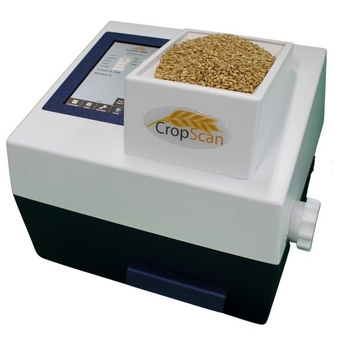

CropScan 3000 X

The CropScan 3000X Grain Analyser is a
bench top NIR analyser designed for rapid
measurement of protein, moisture, starch
and oil in wheat, barley, corn, soybean,
canola, oats, triticale, lupins and other
cereals grains and oil seeds.

The difference compared to the CropScan 3000B and CropScan 3000BT models is the manually adjustable sample pathlength.
For each crop, use the button on the right to set the appropriate value, which must be done before loading the sample.

WAVELENGH: 720-1100nm
OPTICAL DETECTOR: Silicon Diode Array
CALIBRATION: PLS (Partial Least Squares)
SAMPLE PATHLENGTH:
8mm, 15mm, 23mm, 28mm
SAMPLE SIZE: 250ml
SCAN SPEED: 2-4 seconds, 10 subscans per analysis
DISPLAY: Touch Screen PC, Secondary Screen for CropNet
WEIGHT: 10kg

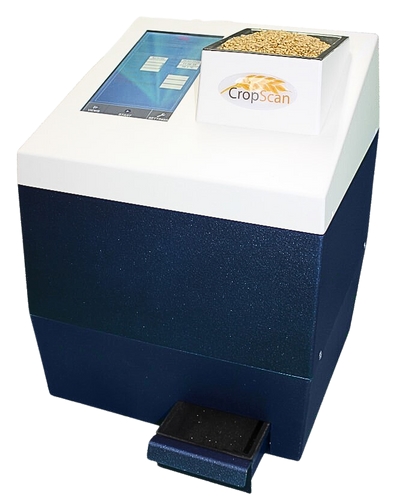

CropScan 3000 B / BT

The CropScan 3000B Whole Grain Analyser is a bench top Near Infrared Transmission (NIT) analyser designed for rapid measurement of protein, moisture, starch and oil in wheat, barley, corn, soybean, canola, oats, triticale, lupins and other
cereals grains and oil seeds.

There are two models;
CropScan 3000B
CropScan 3000BT with Test Weight

WAVELENGH: 720-1100nm
OPTICAL DETECTOR: Silicon Diode Array
CALIBRATION: PLS (Partial Least Squares)
SAMPLE PATHLENGTH: Automatic
between 5mm - 30mm
SCAN SPEED:  2-4 seconds,
10 subscans per analysis
DISPLAY: Touch Screen PC,
Secondary Screen for CropNet
WEIGHT: Cr3000B 17kg, Cr3000BT 23kg

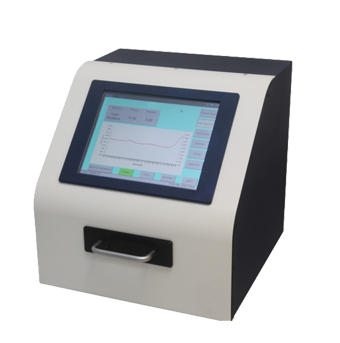

CropScan 3000 F

The CropScan 3000F NIT analyser has been designed to provide flour millers with a single instrument to measure both whole grains of wheat as well as flour, semolina and meal. Measures protein, moisture, ash, water absorption and starch damage.
With a built in touch screen computer automates the data handling and reporting functions required by today's flour milling industry.

The most significant advance is that the rotating dish sampling system handles whole grains and powders quickly and accurately. Simply load a sample, scrape across and ready for analysis

WAVELENGH: 720-1100nm
OPTICAL DETECTOR: Silicon Diode Array
SCAN SPEED: 2-4 sec per scan
SAMPLE PATHLENGTH:
8mm, 16mm, 24mm, 30mm
DISPLAY: Touch Screen PC
WEIGHT: 12 kg
